IDH9000 Series Handheld Barcod

Product Introduction

Functional Features

1. Highly robust algorithms effectively handle challenging codes such as soiled, skewed, low-contrast, and metal laser-engraved barcodes.

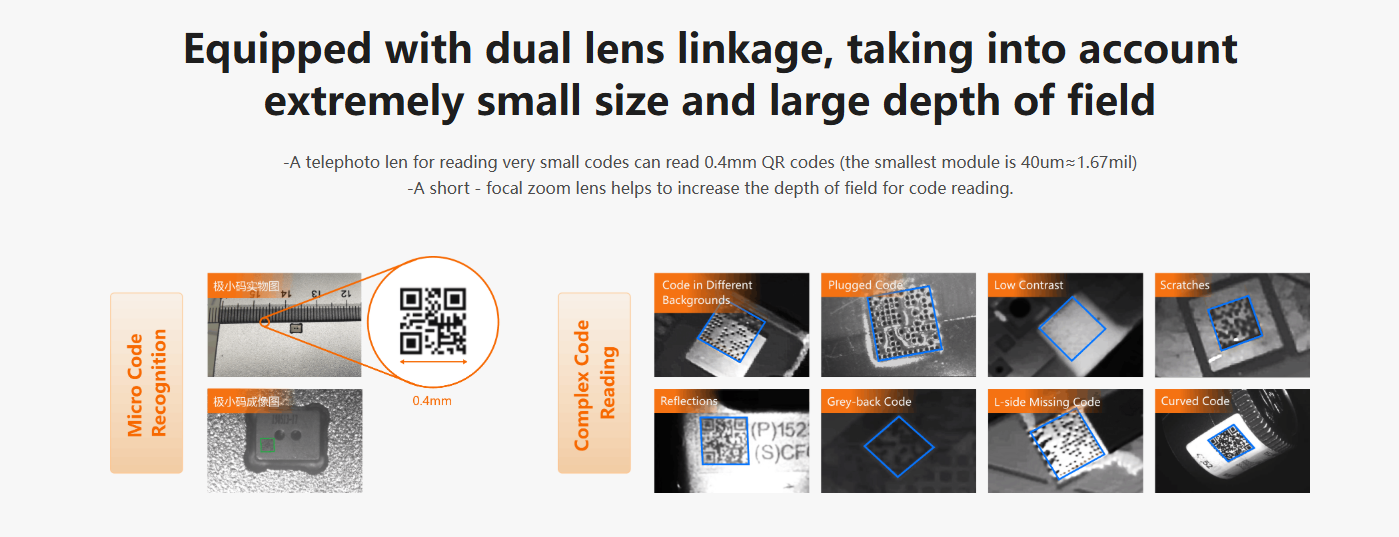

2. Miniature lens enables barcode reading down to 0.04 mm module width; zoom lens achieves high-speed reading with large depth of field.

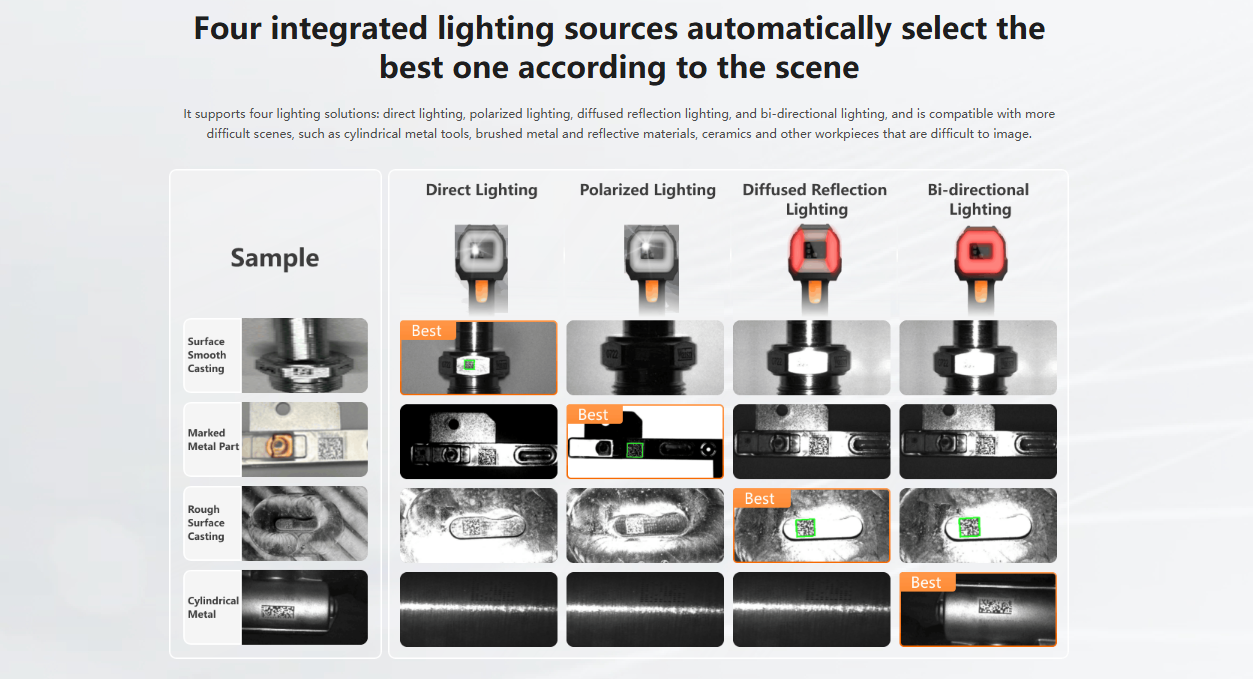

3. Integrated illumination modes: direct, polarized, diffuse, and dual-side diffuse lighting for optimal performance on resin, reflective surfaces, castings, cylinders, and other typical scenarios.

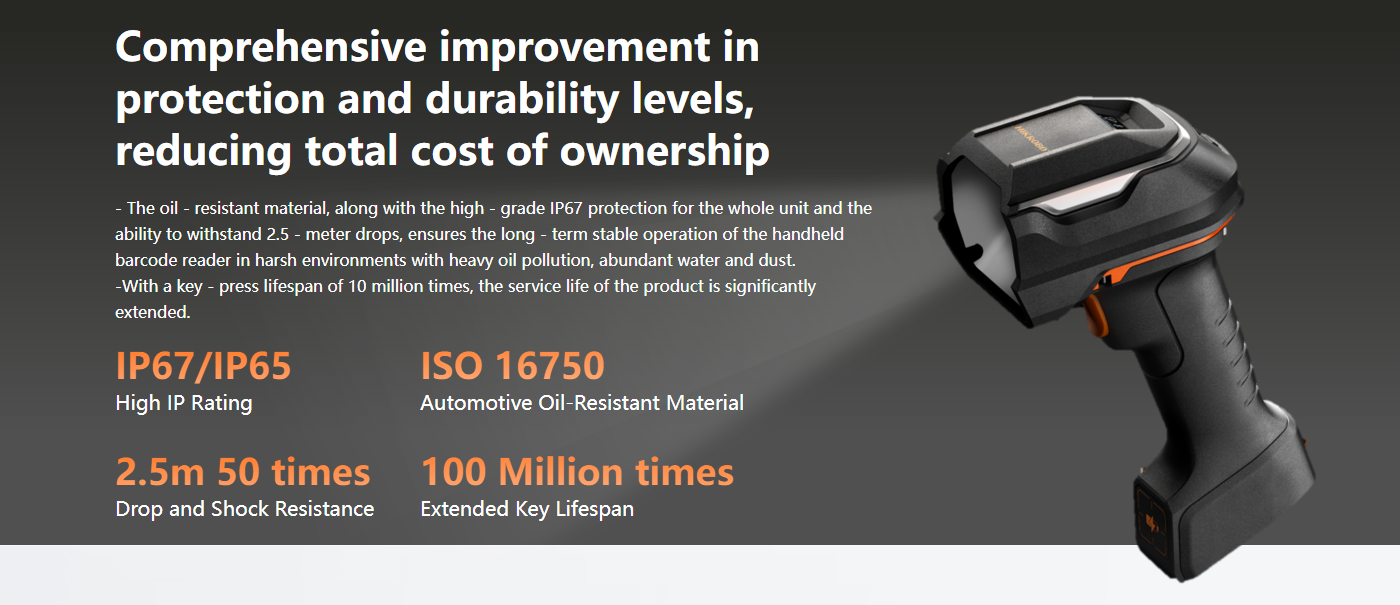

4. Rugged construction withstands drops (2.5 m, 50 times), tumbles (0.5 m, 20,000 times), chemical corrosion (gasoline/diesel), and strong electrostatic interference.

5. OLED display enables device/barcode viewing and parameter configuration without PC connection.

6. One-touch parameter tuning for rapid configuration of reading parameters and modes.

7. Supports TCP, FTP, UDP, USB, Profinet, EthernetIP, Modbus, Serial, SmartSDK, and other communication protocols.

Ordering Model

MV-IDH9000/13HHD/16RP/U

*Product specifications may vary due to environmental factors. The company assumes no liability for any resulting consequences.

Product detailed parameters





Dimensions and Model Parameters

Model	Model	MV-IDH9000/13HHD/16RP/U

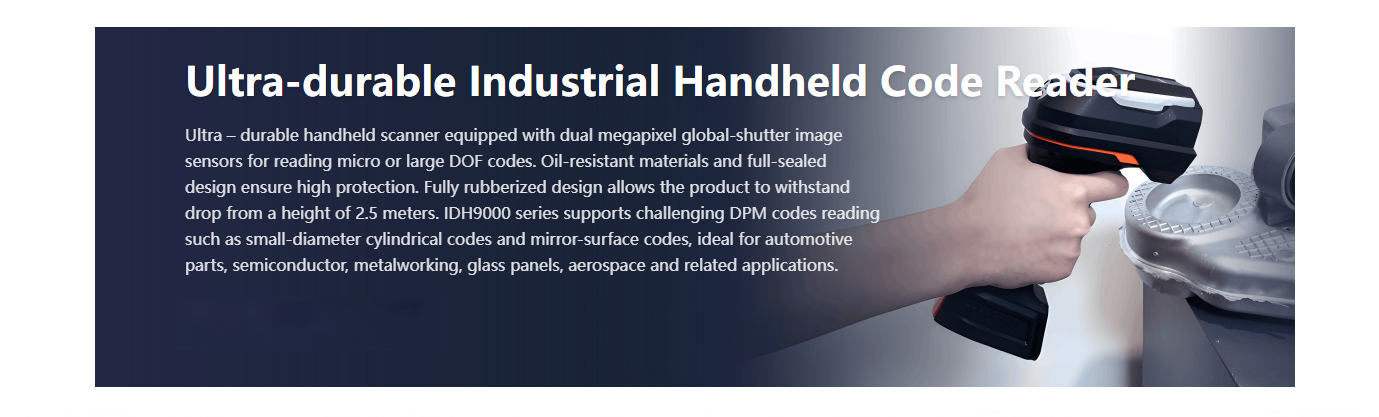

Model	Name	Ultra - durable U - shaped Wired Handheld Barcode Reader
性能	条码类别	One - dimensional codes: Code 39,Code 93,Code 128,CodaBar,EAN8,EAN13,ISBN,ISSN,ITF25,ITF14,UPCA,UPCE Two - dimensional codes: QR Code,Data Matrix,MicroQR,Aztec Stacked codes: PDF417
	Minimum Barcode Precision	1.57 mil
	Sensor Type	CMOS
	Resolution	1280 × 1024
	Depth of Field	Code128(3 mil):0 mm ~ 100 mm1 Code 128(10 mil):0 mm ~ 250 mm1 Code 128(20 mil):0 mm ~ 350 mm1 Code 39(5 mil):0 mm ~ 150 mm1 Data Matrix(5 mil):5 mm ~ 79 mm QR Code(20 mil):0 mm ~ 250 mm1
	Field of View	Short - focus lens: 43.6° (H) × 35.5° (V); Long - focus lens: 10.4° (H) × 8.3° (V)
	Detection Angle	Tilt angle ± 60°, Skew angle ± 60°, Rotation angle 360°
	Symbol Contrast	20 %
	Communication Protocol	SmartSDK,USB(HID/CDC),Serial2
Electrical Characteristics	Interface	USB2.0, DC connector
	Power Supply	12 VDC
	Current Consumption	0.7 A (maximum current); 0.47 A (typical current)
Structure	Focal Length	Short - focus lens: 4.3 mm; Long - focus lens: 16 mm
	Ambient Illumination	0 ~ 100000 lux
	Light Source	Supports 4 light sources: Diffused light source (red light), Double - sided light source (red light), Direct light source (white light), Polarized light source (white light); The device defaults to Smart reading mode and can automatically query the full light source according to the barcode scene.
	Aimer	650 nm laser (red light) + LED (green light)
	Prompt Method	LED indicator light, buzzer, vibrator
	Display Screen	0.96 - inch OLED screen
	Dimensions	74 mm × 109.9 mm × 227.1 mm
	Weight	Approximately 490 g (excluding cable)
	IP Protection Rating	IP67
	Temperature	Operating temperature: - 10 ~ 50°C; Storage temperature: - 20 ~ 60°C
	Humidity	5% ~ 95%RH，No Condensation
	Drop Height	Drop: 2.5 m, 50 times; Flip: 0.5 m, 20000 times
	Chemical Resistance	ISO 16750
	Air Electrostatic Resistance	± 25 kV (air discharge), ± 10 kV (contact or indirect discharge)
Laser Performance	Laser Safety Class	Class 2 laser product
	Wavelength	650 nm
	Pulse Width	6.6 ms
	Maximum Power	1 mW
General Specifications	Software	IDMVS
General Specifications	Certification	CE,KC
