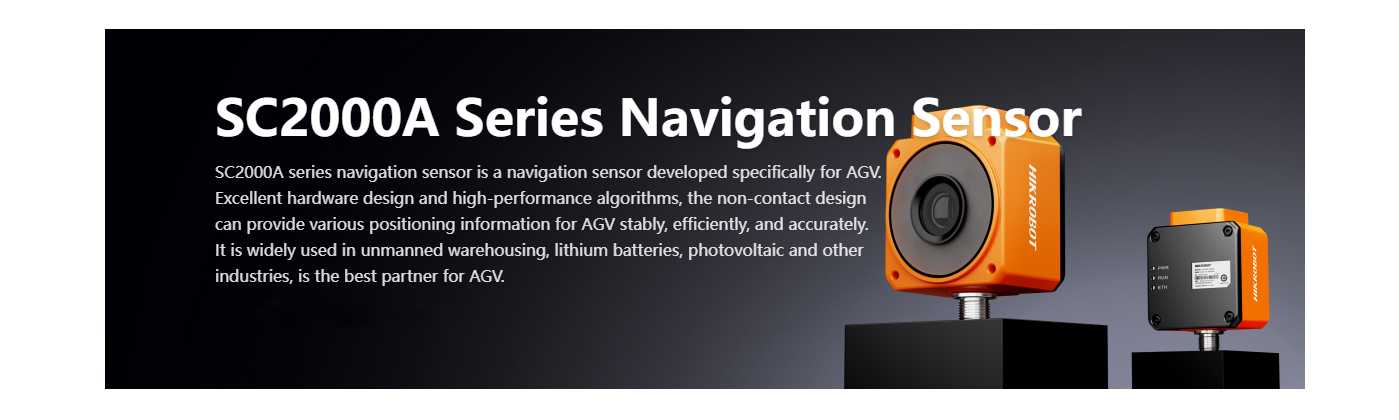

Product Introduction

Features

1. Built-in barcode reading algorithm efficiently decodes DM codes.

2. Highly robust algorithm effectively handles dirty, damaged, or low-contrast barcodes.

3. Premium sensor delivers superior image quality with high-speed data capture.

4. Multiple indicator lights for debugging and status display.

5. M12 low-distortion lens supports wide-field code reading and positioning.

6. Superior optical design with uniform illumination adapts to highly reflective environments.

Ordering Model

MV-SC2005AM-02WBN

*Product specifications may vary due to environmental factors. The company assumes no liability for any resulting consequences.



Detailed Parameters

Model	Model	MV-SC2005AM-02WBN
Model	Name	500,000 - pixel black - and - white, M12 - 2mm lens, fixed focal length 100mm, AGV navigation sensor

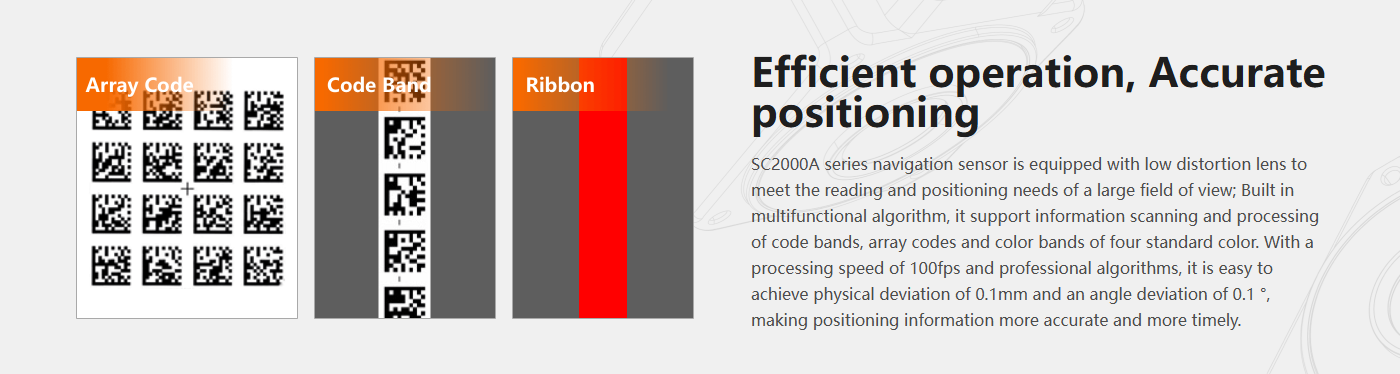

Performance	Barcode Types	2D codes: such as DM - 12, DM - 14
	Maximum Processing Frame Rate	100 fps
	Maximum Reading Speed	100 codes per second
	Maximum Travel Speed	3 m/s
	Sensor Type	CMOS, global shutter
	Pixel Size	4.8 μm × 4.8 μm
	Sensor Size	1/3.6”
	Resolution	800 × 600
	Exposure Time	20 ~ 9000 μs
	Gain	1 ~ 330 dB
	Black/Color	Black and white
	Communication Protocol	SmartSDK,UDP,Serial
Electrical Characteristic	Data Interface	Fast Ethernet(100 Mbit/s),RS-485
	Digital I/O	12 - pin M12 connector for power supply, 1 - channel RS - 485
	Power Supply	24 VDC
	Maximum Power Consumption	18 W@24 VDC (with built - in fill light enabled); 3 W@24 VDC (with built - in fill light disabled)
Structure	Focal Length	2.5 mm
	Working Distance	100 mm ± 5 mm
	Displacement Accuracy	0.1 mm
	Angle Accuracy	0.1°
	Field of View Angle	93.8°
	Field of View Range	170 mm × 130 mm

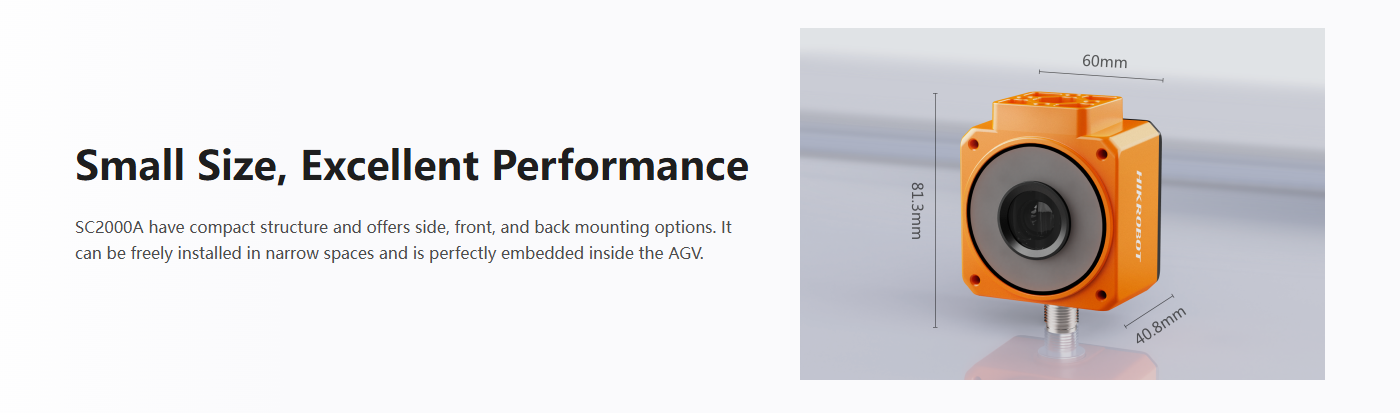

	Dimensions	68 mm × 60 mm × 40.8 mm
	Weight	Approximately 200 g
	IP Protection Rating	IP65 (when properly installed with an appropriate lens waterproof cover)
	Temperature	Operating temperature: - 10 - 50°C; Storage temperature: - 30 - 70°C
	Humidity	10% ~ 90%RH，no condensation
General Specifications	Software	IDMVS
General Specifications	Certification	CE,RoHS
