Product Introduction

The 6530 and 6330 are two new additions to the Videojet DataFlex® Thermal Transfer Overprinter (TTO) series, designed to help you improve production efficiency. These Videojet TTOs utilize innovative technology to further extend printer uptime while reducing quality inspection time, waste, and rework, thereby boosting output, quality, and efficiency.
The 6530 and 6330 TTO printers feature the iAssure™ built-in code quality checker, fewer wear parts, Intelligent Motion™ technology eliminating compressed air requirements, fully electronic operation, quick ribbon cartridge replacement, and automatic ribbon feeding—all delivering maximum uptime advantages.
The DataFlex 6330 is a mid-speed TTO thermal transfer printer capable of printing up to 250 packages per minute*. It offers two print widths—32 mm and 53 mm—enabling optimal combinations of printhead and ribbon widths to deliver a cost-effective solution for your application.
The DataFlex 6530 is a high-speed TTO thermal transfer printer that maximizes uptime while reducing quality inspection time, waste, and rework, thereby enhancing production efficiency. It offers two print widths: 53 mm (with iAssure™ technology) and an industry-innovative air-free 107 mm to meet your specific application needs.
Designed for applications like vertical form-fill-seal (VFFS), the 6530 achieves print speeds up to 1,000 mm/s and production rates of 700 packages per minute.

*Depending on application and packaging material

Product detailed parameters

Maximum Print SpeedSpecifications	6530	6330
Marker Modes	Intermittent and Continuous Motion	Intermittent and Continuous Motion
Print Spacing	Consistent 0.5 mm（0.02 inch）	Consistent 0.5 毫米（0.02 inch）
Ribbon Width	6530(53mm) :20 mm（0.8 inch） Max 55 mm（2.2 inch） 6530(107mm):55 mm（2.2 inch） Max 110 mm（4.33 inch）	6330(53mm) :20 mm（0.8 inch） Max 55 mm（2.2 inch） 6330(32mm):20 mm（0.8 inch） Max 33 mm（1.3 inch）
Barcode Printing	EAN 8、EAN 13、UPC-A、UPC-E、Code 39、EAN 128、Code 128、ITF、RSS (Including Composite QR Codes); Other Barcodes Printable Upon User Request	EAN 8、EAN 13、UPC-A、UPC-E、Code 39、EAN 128、Code 128、ITF、RSS (Including Composite QR Codes); Other Barcodes Printable Upon User Request
Operator Interface	TFT SVGA 800×480 Full-color LCD touchscreen, WYSIWYG print preview, full online diagnostics, 3-level password protection, multilingual support	TFT SVGA 800×480 Full-color LCD touchscreen, WYSIWYG print preview, full online diagnostics, 3-level password protection, multilingual support
Master/Slave Functionality (1 user interface controls 4 printers)	1 Videojet CLARiTY controller can manage up to 4 DataFlex® 6530 printers	1 Videojet CLARiTY controller can manage up to 4 DataFlex® 6330 printers
Standard Communications:	Supports RS232, dual Ethernet, USB card readers and scanners, binary and ASCII communication protocols, Windows™ drivers, ZPL and SATO emulation	Supports RS232, dual Ethernet, USB card readers and scanners, binary and ASCII communication protocols, Windows™ drivers, ZPL and SATO emulation
Web browser functionality	Yes	Yes
Continuous Mode:	–	–
Maximum Print Area (Width × Length)	6530(53mm) :53 mm（2.1 inch）Width x 200 mm（7.9 inch）Length 6530(107mm):107 mm（4.3 inch）Width x 300 mm（11.8 inch）Length	6330(53mm) :53 mm（2.1 inch）Width x 200 mm（7.9 inch）Length 6330(32mm):32 mm（1.3 inch）Width x 200 mm（7.9 inch）Length
Maximum Print Speed	6530(53mm) :1,000 mm/s（39.4 inch/s） 6530(107mm):1,000 mm/s（39.4 inch/s）	6330(53mm) :750 mm/s（29.5 inch/s） 6330(32mm):750 mm/s（29.5 inch/s）
Minimum Print Speed	1 mm/s（0.04 inch/s）	1 mm/s（0.04 inch/s）
Estimated Maximum Speed (Single-Line Printing）	6530(53mm) : Up to 700 Packages/Minute 6530(107mm):Up to 450 prints/minute	6330(53mm) :Up to 250 prints/minute 6330(32mm):Up to 250 prints/minute
间歇模式：	–	–
Maximum Print Area (Width × Length)	6530(53mm) :53 mm（2.1 inch）Width x 75 mm（2.95 inch）Length 6530(107mm):107 mm（4.3 inch）Width x 75 mm（2.95 inch）Length	6330(53mm) :53 mm（2.1 inch）Width x 75 mm（2.95 inch）Length 6330(32mm):32 mm（1.3 inch）Width x 75 mm（2.95 inch）Length
Maximum Print Speed	6530(53mm) :800 mm/s（31.5 inch/s） 6530(107mm):600 mm/s（23.6 inch/s）	6330(53mm) :750 mm/s（29.5 inch/s） 6330(32mm):750 mm/s（29.5 inch/s）
Minimum Print Speed	10 mm/s (0.4 inch/s)	40 mm/s（1.6 inch/s）Full print quality； 10 mm/s（0.4 inch/s）Draft mode print quality

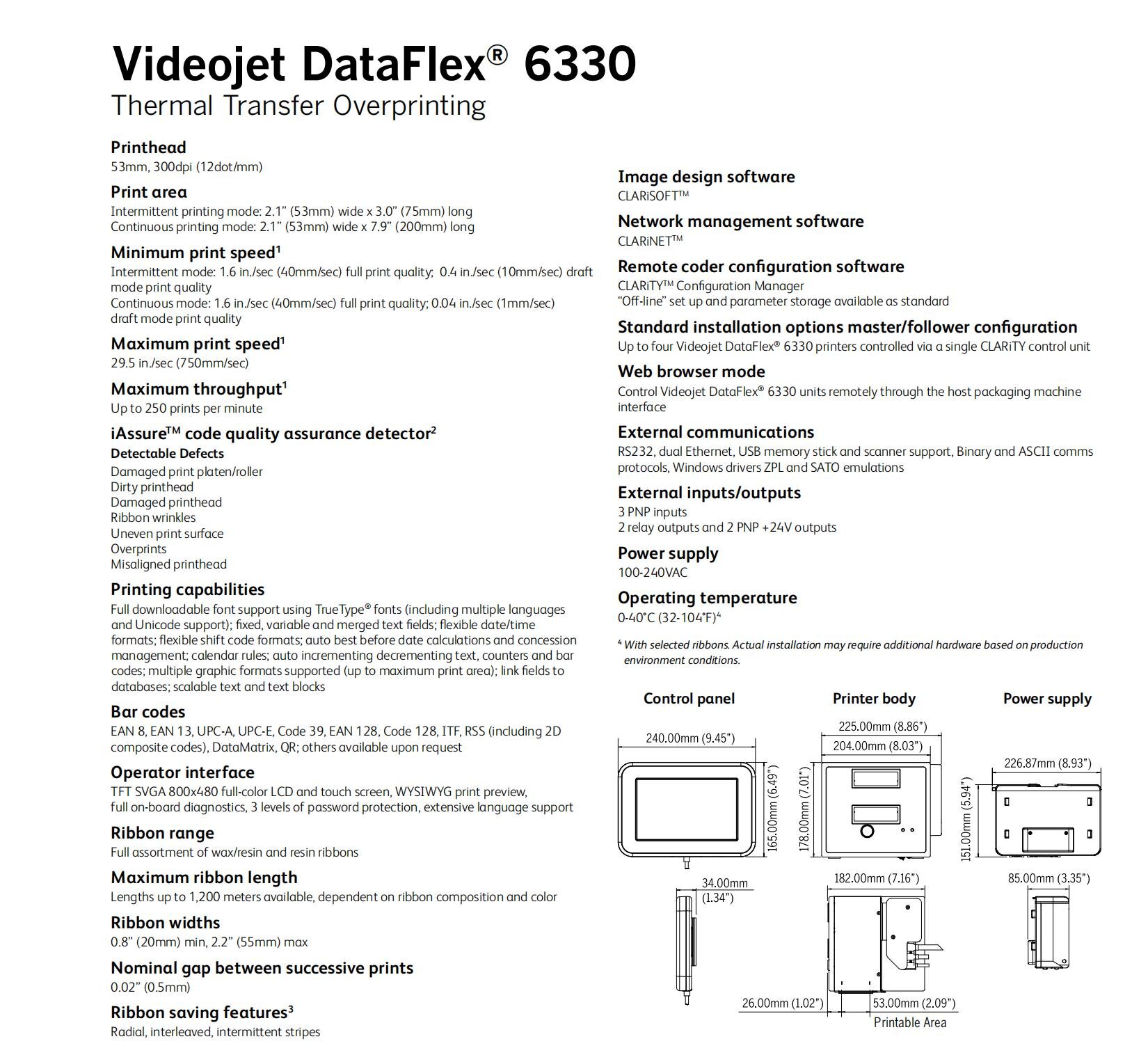

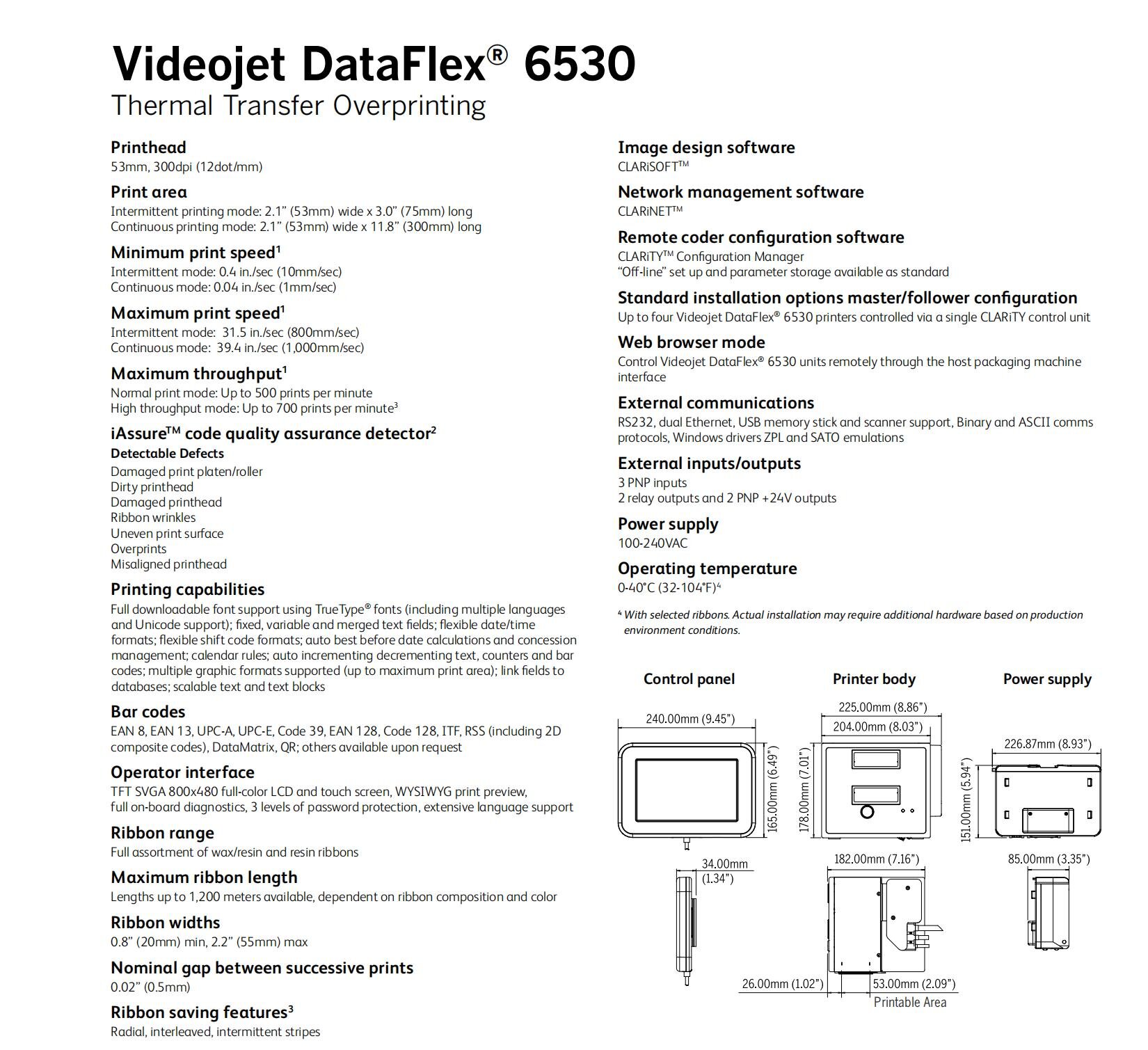

Complete specifications are shown below（6330 and 6530）



Uptime Advantages

Videojet Intelligent Motion™ technology eliminates compressed air requirements, reducing costs and downtime while significantly extending printhead life and delivering consistent print quality.

Automatic Ribbon Printer.

1,200-meter ribbon capacity and multiple ribbon-saving modes substantially reduce ribbon replacement frequency.

Code Quality Assurance

Videojet iAssure™ built-in code quality checker* reduces waste and rework without extra hardware, installation, or training.

Videojet CLARiTY™ software ensures correct codes are always printed on the right products.

Simple to Use

Intuitive operator interface.

Built to withstand harsh production environments.

Minimal wear parts that are easy to replace extend production line uptime.

Engineered for Enhanced Productivity

Maintain consistent marking quality using default settings without a field pressure gauge, eliminating operator over-adjustment of pressure and energy valves.

Quickly identifies code clarity issues, alerting users for timely printer maintenance.

Industry-leading quick-change ribbon cartridge design enables rapid ribbon replacement to maximize uptime.

25% faster print speed compared to legacy Videojet TTO models.
