Videojet® 2380 Large Character Marker

Product Introduction

Large Character Marking (LCM) system for outer cases and cartons

Modular and easy to integrate, enabling quick startup and worry-free performance.
Designed for operation and maintenance by all user types, requiring minimal training and experience.
Professional micro-motion cleaning technology automatically performs daily printhead cleaning, helping ensure consistent print quality while reducing smudges or maintenance frequency.
It prints durable, high-resolution text, logos, and barcodes to meet distribution chain demands at any time.
Using four printhead options, all necessary information can be printed inline directly onto generic cartons, saving pre-printed boxes and storage space.

Product detailed parameters

Specifications	Parameter Value
Print Speed
Barcode Printing	0.6 – 66 m/min (2.0 to 216 ft/min)
Alphanumeric Text	Up to 132 m/min (433 ft/min) Speed is dependent on print content
Print area (height × length)	70 × 2,000 mm (2.8 × 78 in)
Printhead	70 mm (2.8 inches) height, 180 dpi
User Interface	8-inch high-sensitivity TFT LCD touchscreen
Connectivity Options	RS232, Ethernet, and Wi-Fi * (Availability varies by country/region)
Built-in Memory	8 GB Memory

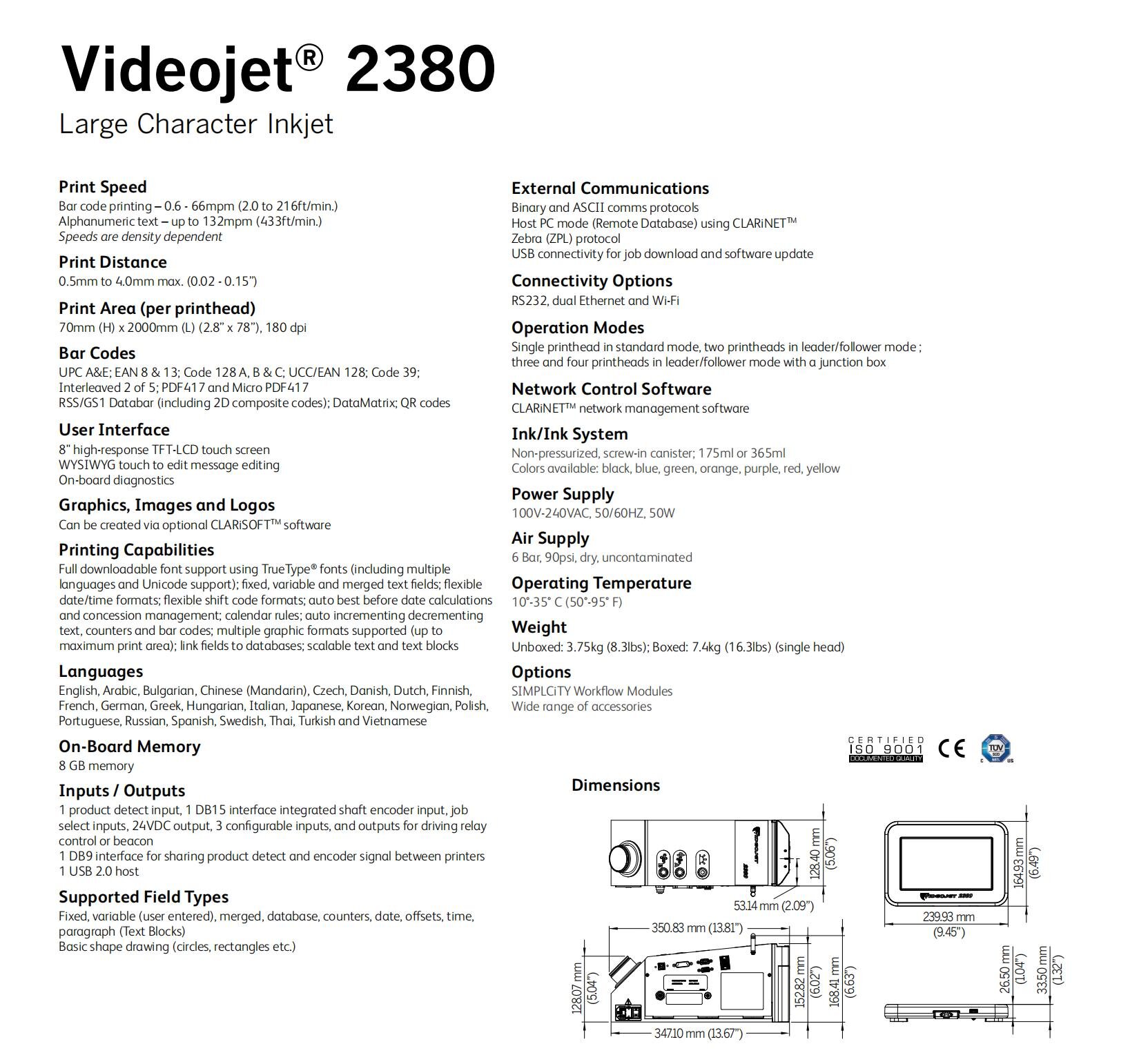

Complete specifications are shown below

Versatile solutions tailored to your requirements

Utilize four printhead options to print on multiple sides of cartons with a print height exceeding 70 mm. Save on pre-printed boxes and storage space by printing all necessary information directly onto generic cartons inline.

All necessary information is printed, saving pre-printed boxes and storage space.

Gyro sensor continuously monitors printer installation angle to prevent ink leakage and detects/records external impact signals.

Barcode scanners integrate easily with the touchscreen for rapid task selection and data entry.

User-friendly marking system

The intuitive, easy-to-use touchscreen ensures accurate print content editing and guides you through each step, significantly reducing human-machine interaction and potential user errors.

Manage up to four printheads using the same touchscreen.

Existing CLARiTY™ print jobs are compatible with the Videojet 2380 and can be downloaded via USB.

Split-design offers flexible placement for quick installation and smooth maintenance, keeping your production line running effortlessly.

*Older job files may require testing to ensure successful upload
