3D Laser Profile Sensor
3D Laser Profile Sensor 3D Laser Profile Sensor

3D Laser Profile Sensor


Contact Us

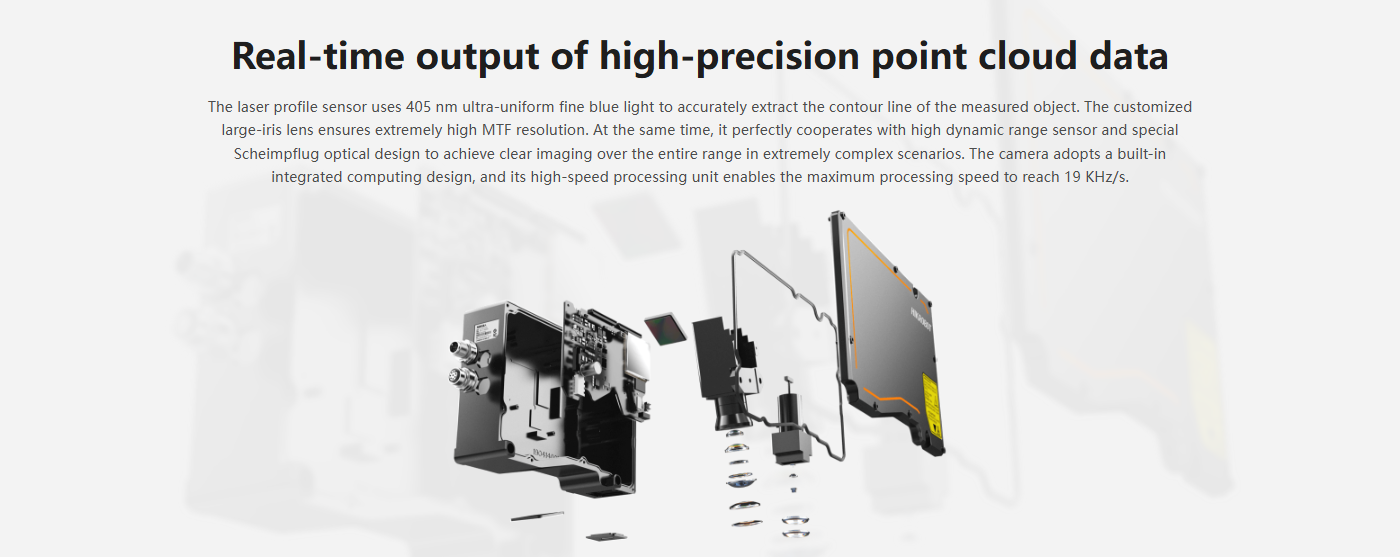

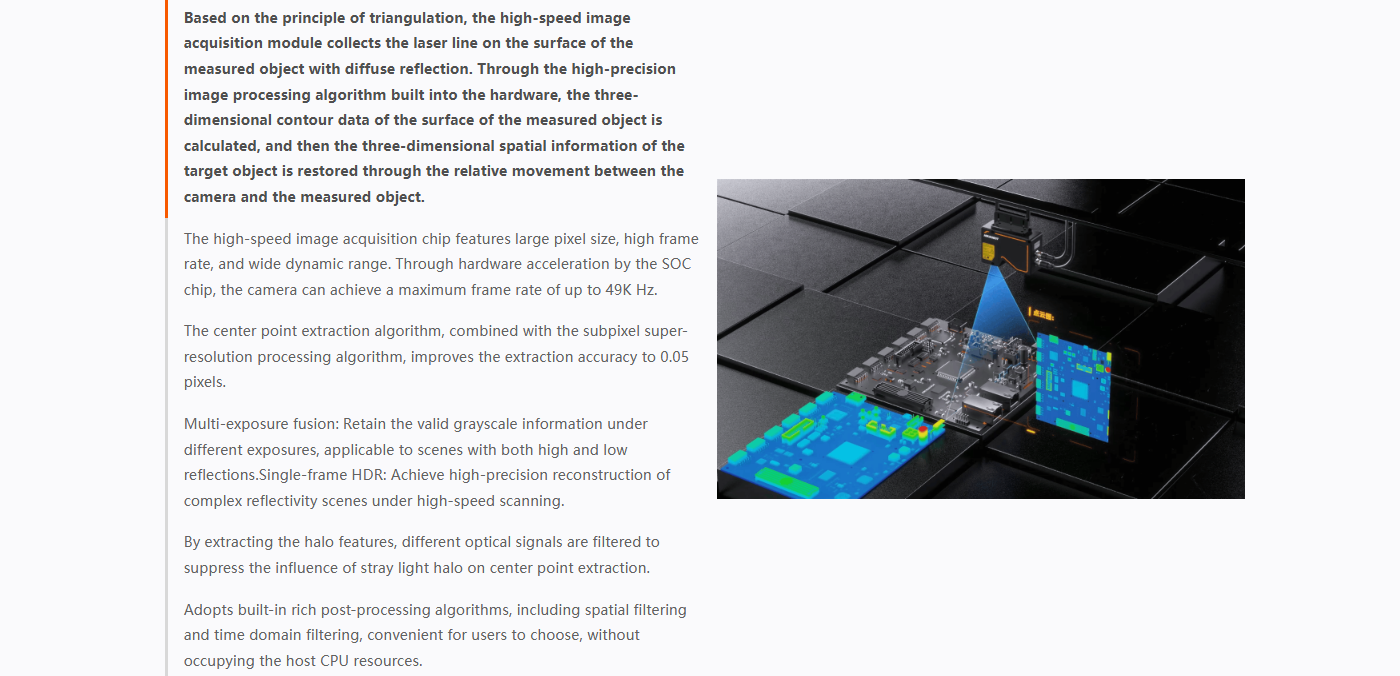

Product Introduction

    Key Feature

    Built-in high-accuracy algorithm and accuracy is up to submicron level.

    Adopts high frame rate chip with 10 KHz scan frame rate.

    Supports multiple exposure modes with good robustness.

    Adopts multiple-frame integration technology to provide complete profiles.

    Provides multiple filter modes with stable data.

    Supports ROI selection and auto setting for easier operation.



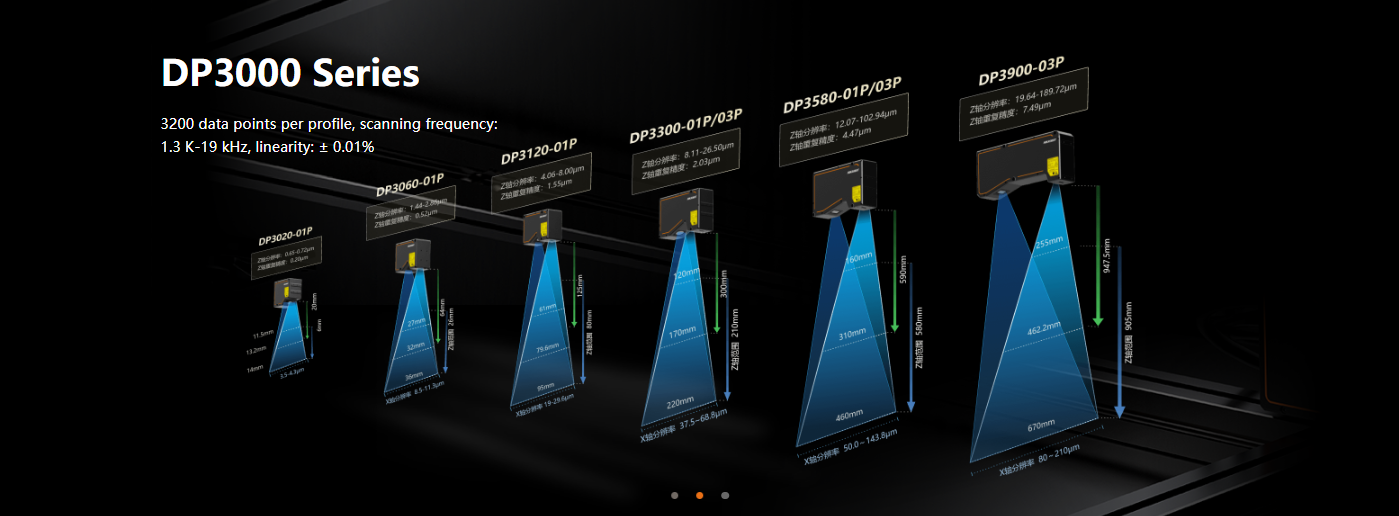

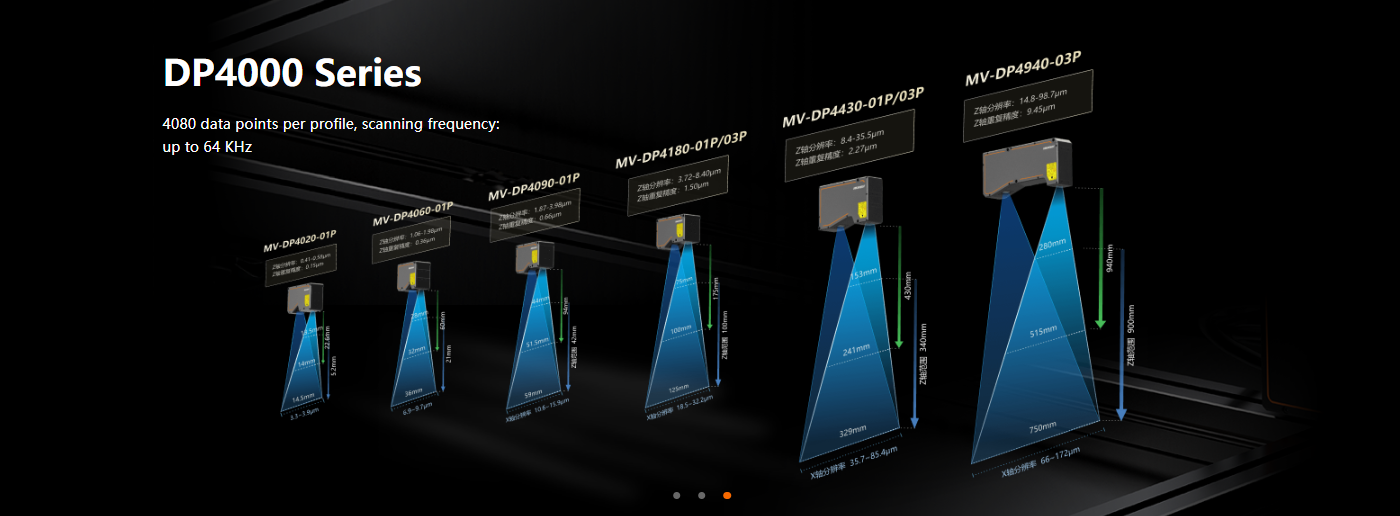

    Available Model

    MV-DP2060-01P

    *Product specifications may vary due to environmental factors. The company assumes no liability for any resulting consequences.

  • Product detailed parameters

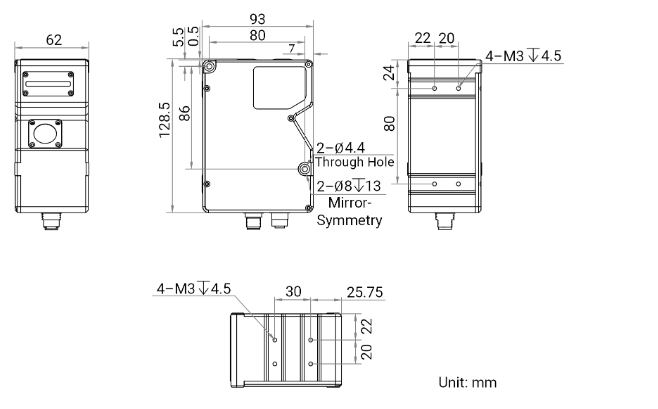

Dimension


Dimension


*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Specifications

ModelProduct ModelMV-DP2060-01P
TypeMV-DP2060-01P(0-STD)
PerformanceData points/profile2048
Reference distance64 mm
Measurement range (Z-axis)26 mm
Measurement range (X-axis)27 mm @ near field of view 31.5 mm @ reference distance 36 mm @ far field of view
Resolution (Z-axis)1.45 μm to 2.83 μm
Repeatability (Z-axis)*0.49 μm @ data that sensor tests gauge block on optical platform
Linearity Z-axis (±% of MR)0.01
Profile data interval13.2 μm to 18.5 μm
Scan frame rate660 Hz (within max. measurement range), max. 10 kHz (in ROI mode)
Data outputOriginal image, profile data, depth image, brightness image
Trigger modeSoftware trigger, hardware trigger (differential encoder)
Laser safety classClass 3R
Wavelength405 nm
Electrical featureData interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1)
Power supply24 VDC
Power consumptionTyp. 13.8 W @ 24 VDC
MechanicalDimension128.5 mm × 93 mm × 62 mm (5.1" × 3.7" × 2.4")
WeightApprox. 850 g (1.9 lb.)
Ingress protectionIP67
TemperatureWorking temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 85% RH (no condensation)
GeneralClient software3DMVS, VM3D, or third-party software
Operating system32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)
