CH Series Area Scan Camera

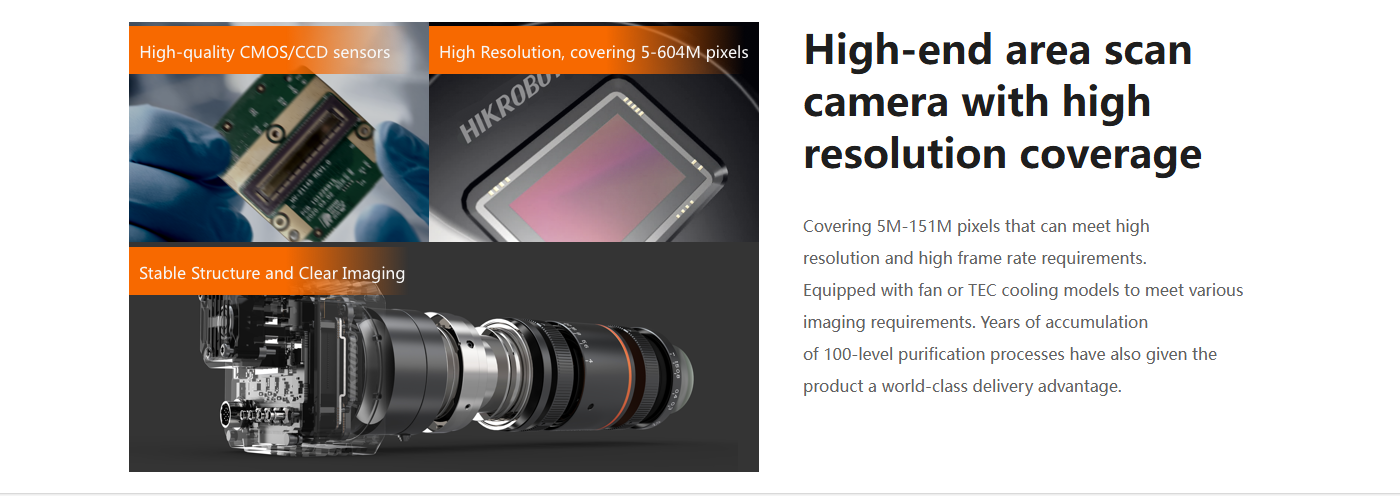

Product Introduction

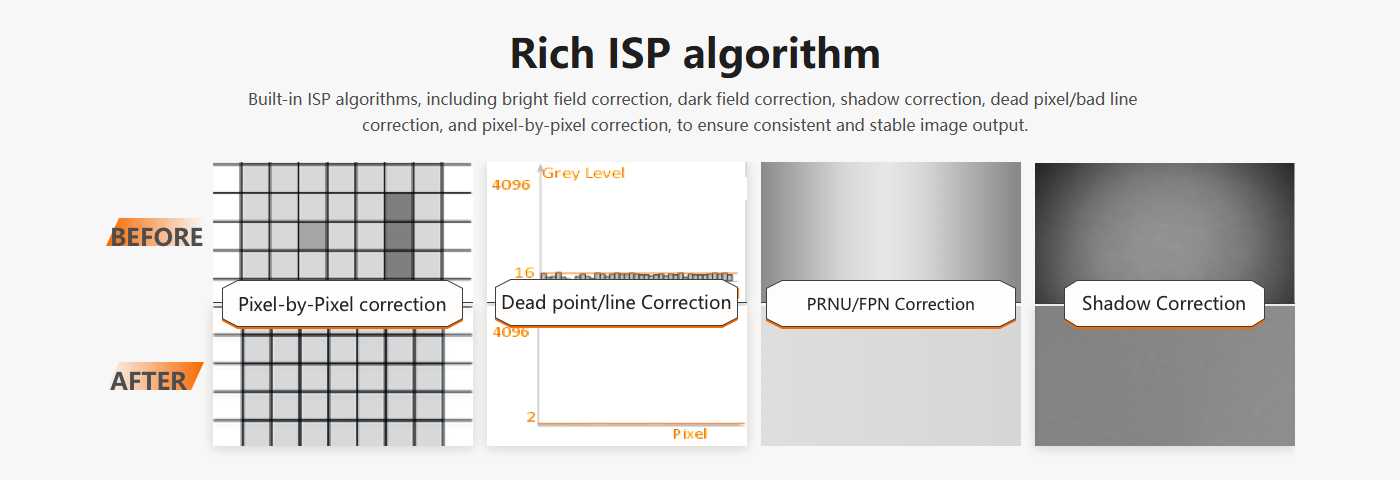

Key Feature

Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT, etc.

Supports customized ROI and horizontal and vertical reverse image output.

Supports hardware trigger, software trigger, free run, and supports triggering via Camera Link frame grabber.

Supports Base, Medium, Full, 80-bit configuration mode.

Compatible with Camera Link V2.0 Protocol and GenlCam Standard.

Available Model

MV-CH040-A0CM

*Product specifications may vary due to environmental factors. The company assumes no liability for any consequences arising therefrom.

Product detailed parameters

Dimensions

*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Specifications

Model	Product Model	MV-CH040-A0CM
Model	Type	4MP Area Scan Camera, Camera Link
Performance	Sensor type	CMOS, global shutter
	Pixel size	5.5 μm × 5.5 μm
	Sensor size	1"
	Resolution	2048 × 2048
	Max. frame rate	180 fps @2040 × 2048 Mono 8
	Configuration mode	Base, Medium, Full, 80-bit
	Tap geometry	1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y
	Tap number	2 Taps, 4 Taps, 8 Taps, 10 Taps
	Pixel clock	40 MHz, 66 MHz, 80 MHz, 85 MHz
	Dynamic range	59.7 dB
	SNR	39.6 dB
	Gain	0 dB to 12 dB
	Exposure time	28 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2
	Decimation	Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	Camera Link with SDR Connector
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). Camera Link interface provides I/O (CC1/CC2/CC3/CC4)
	Power supply	9 VDC to 24 VDC, supports PoCL
	Power consumption	Typ. 3.6 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")
	Weight	Approx. 100 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -10 °C to 50 °C (14 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or frame grabber software meeting with GenlCam Protocol
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11
	Compatibility	Camera Link V2.0, GenlCam
	Certification	CE, RoHS, KC
