CL Line Scan Camera

Product Introduction

Key Feature

Supports TDI and image high-bandwidth function.

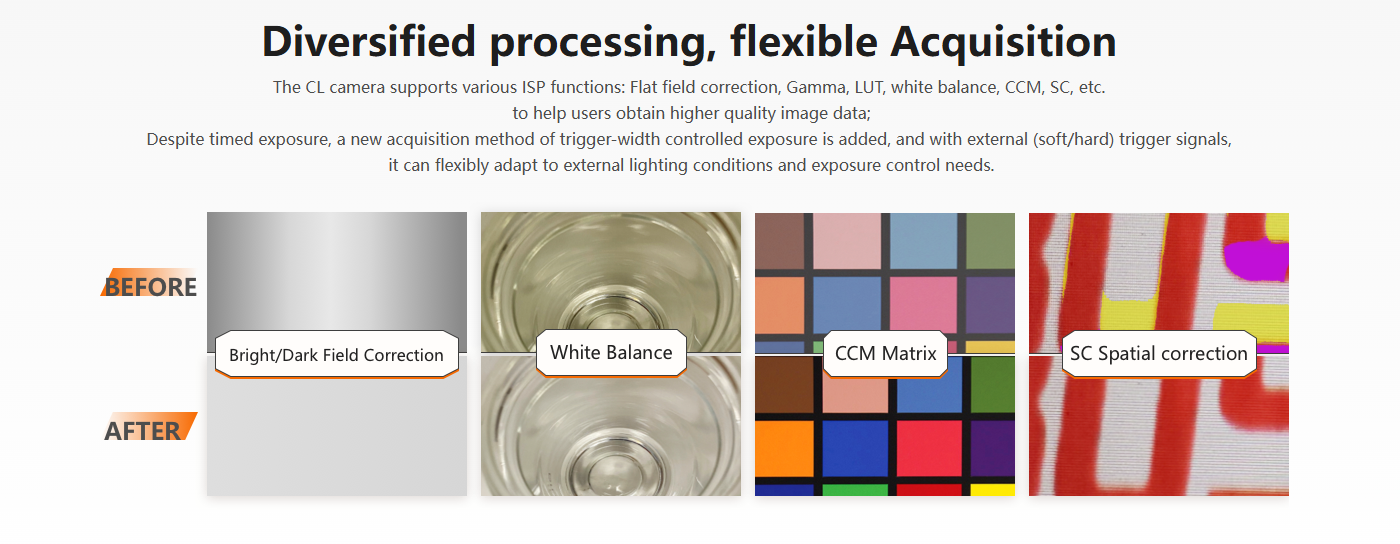

Supports Gamma correction, FFC correction, LUT, black level, etc.

Adopts bi-directional I/O and flexible configuration for input/output signals.

Supports flexible installation from different sides.

Compatible with GigE Vision V2.0 protocol and GenlCam standard.

Available Model

MV-CL024-91GM

*Product specifications may vary due to environmental factors. The company assumes no liability for any consequences arising therefrom.

Product detailed parameters

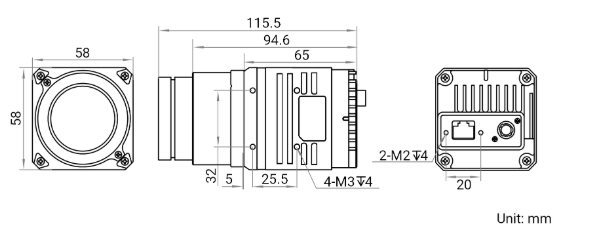

Dimensions

*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Specifications

Model	Product Model	MV-CL024-91GM
Model	Type	2k linescan camera，mono，GPixel，7μm
Performance	Sensor type	CMOS
	Pixel size	7 μm × 7 μm
	Resolution	2048 × 2
	Image mode	Supports 1-line, 2-TDI
	Max. line rate	Standard mode: 58 kHz @ Mono 8, 29 kHz @ Mono 10/12 High-bandwidth mode: 86 kHz @ Mono 8, 58 kHz @ Mono 10/12
	Dynamic range	68 dB
	SNR	44.7 dB
	Gain	1.0 ×
	Exposure time	3 μs to 10 ms
	Exposure mode	Off/Once/Continuous exposure mode, and supports trigger-width exposure
	Mono	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical feature	Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
	Digital I/O	12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
	Power supply	12 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 5.2 W @ 12 VDC
Mechanical	Lens mount	M42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and others via lens adapter
	Dimension	62 mm × 62 mm × 40.5 mm (2.4" × 2.4" × 1.6")
	Weight	Approx. 256 g (0.6 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
	Humidity	5% RH to 90% RH (no condensation)
General	Client software	MVS or the third-party software meeting with GigE Vision protocol
	Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
