HDMI Microscope Camera

Product Introduction

Key Feature

Supports 2 MP high-quality image and 60 fps frame rate.

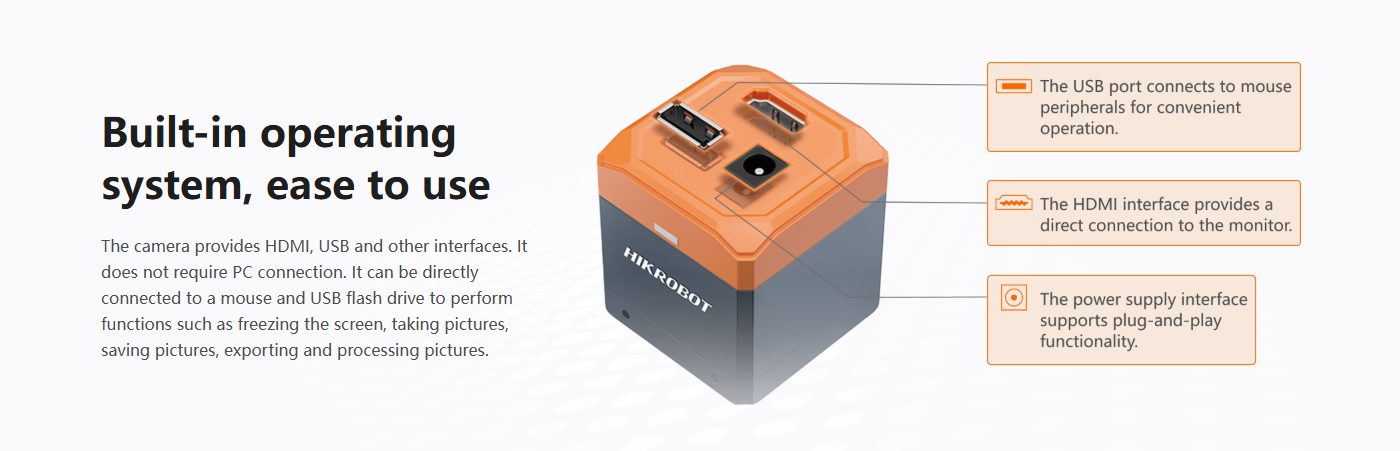

Provides HDMI interface to connect to a monitor directly.

Provides USB 2.0 interface to connect to a mouse.

Supports cross line on the image, and horizontal and vertical reverse image output.

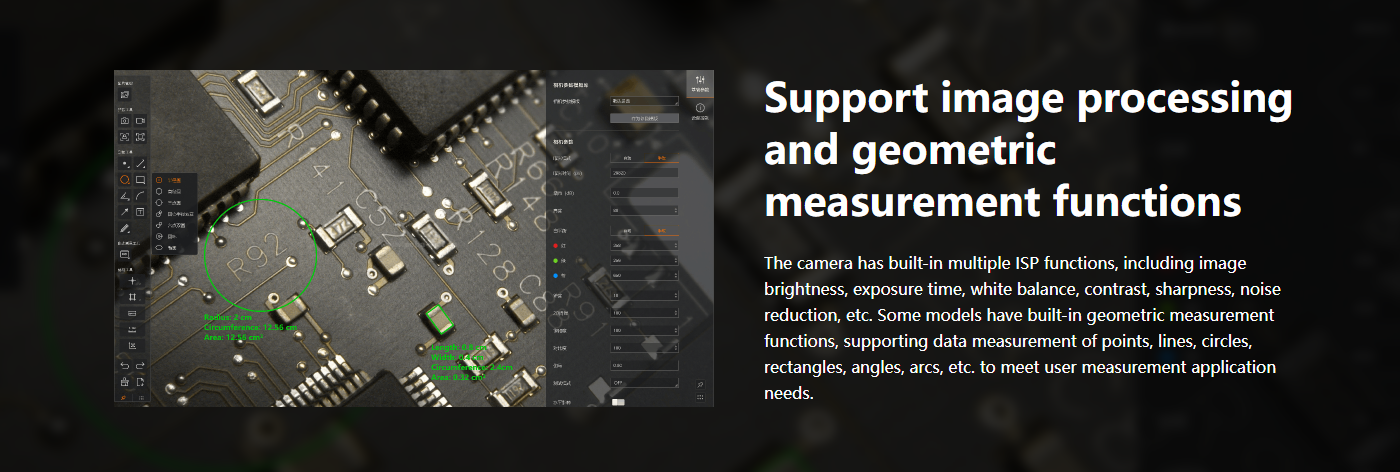

Supports image adjustment, such as white balance, brightness, sharpness, 2D noise reduction, saturation, contrast, Gamma correction, and digital WDR.

Available Model

MV-CM2020C-0H

*Product specifications may vary due to environmental factors. The company assumes no liability for any consequences arising therefrom.

Product detailed parameters

Dimensions


*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Specifications

Model	Product Model	MV-CM2020C-0H
Model	Type	2MP HDMI Camera
Performance	Sensor type	CMOS, rolling shutter
	Pixel size	3.75 μm × 3.75 μm
	Sensor size	1/2"
	Resolution	1920 × 1080
	Max. frame rate	60 fps
	Gain	0 dB to 42 dB
	Exposure time	300 μs to 100 ms
	Mono/color	Color
	Exposure mode	Auto/manual
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Transmission interface	HDMI
	Console interface	USB 2.0
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 1.9 W @ 12 VDC
Mechanical	Lens mount	C-mount
	Dimension	50 mm × 50 mm × 55.4 mm (2.0" × 2.0" × 2.2")
	Weight	220 g (0.5 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
	Humidity	20% RH to 95% RH, no condensation
General	Certification	CE, RoHS
